Step-by-Step Load Testing Procedures

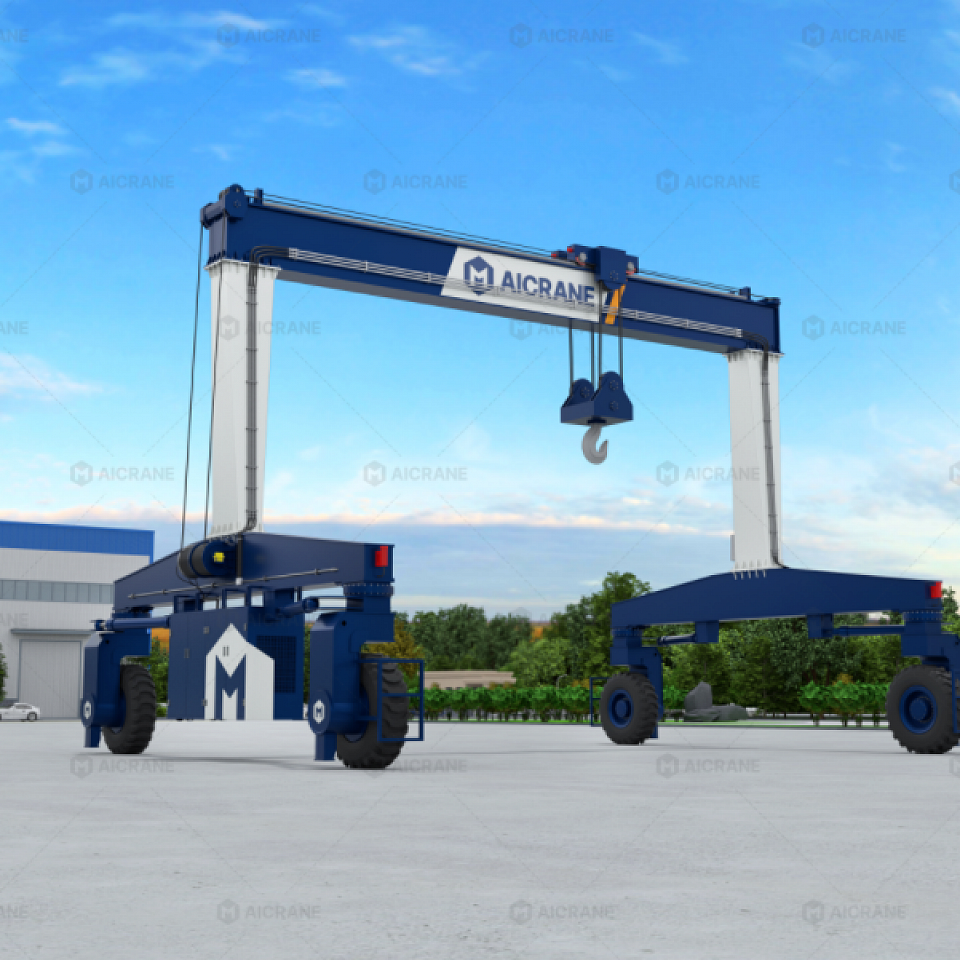

Load testing is one of the most critical steps after installing a Rubber Tired Gantry (RTG) crane. It ensures that the crane operates safely, meets design specifications, and performs reliably under real working conditions. Whether the crane is used for container handling, logistics yards, or manufacturing terminals, load testing verifies that all structural components, mechanical systems, electrical systems, steering modes, and safety protections function correctly before being put into service. This article provides a complete guide to load testing procedures after RTG crane installation, including preparation, testing methods, safety protocols, and post-test evaluation.
1. Importance of Load Testing After RTG Crane Installation
Load testing serves multiple functions in the commissioning stage:
1.1 Validate Structural Integrity
The RTG crane’s steel frame, girders, spreader, trolley system, and lifting mechanisms must withstand rated loads without deformation, instability, or abnormal vibrations. Load testing confirms compliance with design standards such as FEM, CMAA, ISO, or GB/T safety codes.
1.2 Ensure Safe Operation
A newly installed crane may have uncalibrated components, loose bolts, misalignment, or incorrect limit settings. Load testing identifies these issues under controlled conditions before real operation.
1.3 Verify Performance of Mechanical and Electrical Systems
Critical systems evaluated during load testing include:
Hoisting mechanism
Trolley travel
Gantry travel
Steering and braking systems
PLC control logic
Anti-sway system
Sensors and safety interlocks
1.4 Ensure Compliance With Regulations
Most ports, factories, and container yards require load testing certification to authorize crane operation.
1.5 Build Customer Confidence
Load testing demonstrates that the crane is safe, reliable, and ready for continuous heavy-duty work.
2. Preparations Before RTG Load Testing
Before load testing begins, a thorough preparation stage ensures safe and accurate test results.
2.1 Installation Verification
A complete inspection must confirm that the rubber tire gantry crane is installed according to manufacturer drawings and specifications. This includes:
Visual inspection of girders, beams, and welds
Checking torque of all bolts and connections
Verification of rail alignment for trolley travel
Inspection of hydraulic lines (if applicable)
Confirmation of cable routing, festoon system, or cable reel installation
2.2 Electrical System Commissioning
Electrical preparation includes:
Testing insulation resistance
Validating PLC logic and safety circuits
Setting travel limits, height limits, and speed parameters
Checking power supply voltage, grounding, and earthing
2.3 Functional Testing (No-Load Testing)
Before adding load, the crane must pass basic functional tests:
Hoisting, lowering, and inching
Trolley travel end-to-end
Gantry travel with different steering modes (straight, 90°, pivot, diagonal)
Emergency stop
Brake response
Anti-sway or sway control calibration
Overload protection
2.4 Safety Preparation
All testing equipment must comply with recognized safety standards. Prepare:
Certified test weights or water bags
Slings, shackles, and spreader equipment
A safety exclusion zone around the test area
Fire extinguishers, radios, and PPE (helmets, gloves, reflective vests)
A test leader and team roles clearly assigned

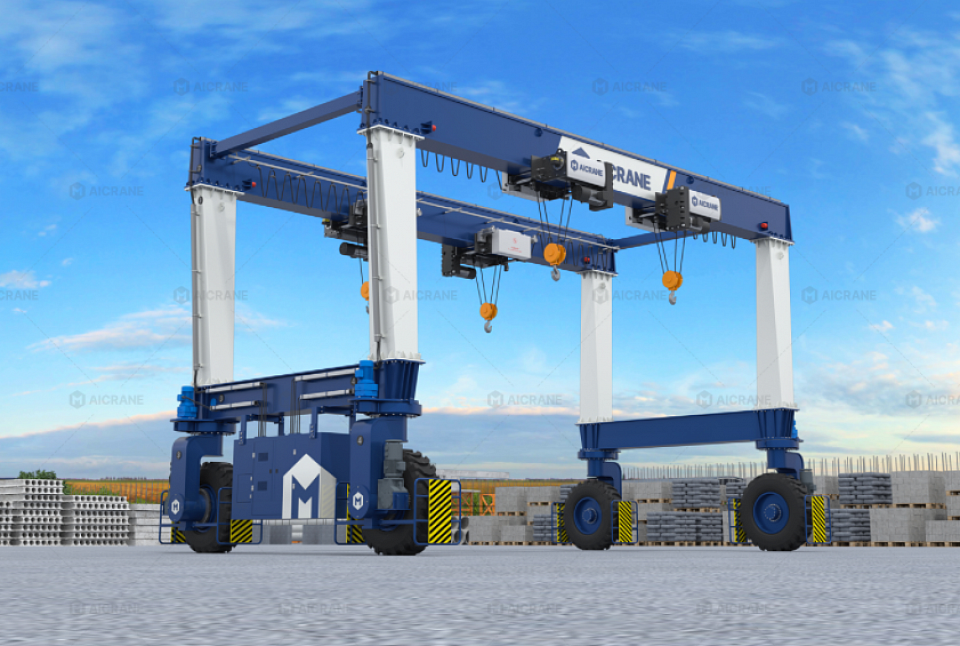

3. Types of Load Testing for RTG Cranes
Load testing of RTG cranes generally includes two major categories:
3.1 Static Load Test
The static load test checks structural strength and stability when the crane supports a non-moving, overweight load.
Typical requirements:
Test load = 1.25 × rated capacity (according to FEM/ISO standards)
Lifting load to maximum height
Hold load for 10–20 minutes
What to inspect:
Beam deflection
Structural deformation
Hoist motor temperature
Wire rope behavior
Brake holding performance
Any abnormal noises or vibrations
3.2 Dynamic Load Test
This test measures how the rubber wheeled gantry crane behaves under operational movements such as lifting, traveling, and lowering.
Typical requirements:
Test load = 1.1 × rated capacity
Perform repeated cycles of:
Hoisting and lowering
Trolley travel with load
Gantry travel in multiple steering modes
Emergency stops
Regular starts and stops
What to evaluate:
Smoothness of movement
Impact load effect
Acceleration and deceleration
Brake performance under motion
Steering stability under load
PLC response time and system reliability
4. Load Testing Procedure
Step 1: Briefing and Safety Meeting
Explain the testing process, roles, hazards, and communication signals.
Step 2: Set Up Test Load
Use certified test weights or water bags attached to the spreader. Confirm:
Safe working load of slings
Correct locking of the spreader twistlocks
Balanced distribution
Step 3: Perform Static Load Test
Lift load to specified height.
Hold for prescribed duration.
Observe for structural changes, cable tension, and motor performance.
Check deflection readings and compare with manufacturer limits.
Step 4: Conduct Dynamic Load Test
Run the RTG through operational cycles:
Lift and lower
Trolley forward and backward
Gantry travel under different steering modes
Simulate normal and emergency braking
Test anti-sway system performance
Step 5: Test Safety Devices
Validate safety systems:
Overload limiter
Height limit switch
Travel limit switches
Park brake
Anti-collision sensors (if installed)
Gantry skew control
Step 6: Record All Data
Testing engineers should document:
Load values
Temperatures
Vibration levels
Deflection measurements
Electrical readings
Travel speed measurements
Step 7: Post-Test Inspection
After unloading:
Inspect steel structure again
Check connections and bolt torque
Review hoist brake condition
Inspect wire ropes for distortion
Examine tyres for deformation or overheating
5. Acceptance Criteria for RTG Crane Load Testing
An RTG crane passes load testing when:
5.1 Structural Requirements
Deflection falls within standard limits
No cracks, weld failures, or deformation
Tyres remain stable without skidding or excessive compression
5.2 Mechanical & Electrical System Requirements
Hoist brake holds load securely
Motors do not overheat beyond design threshold
Trolley and gantry movements are smooth
Steering system remains stable under load
Limit switches operate accurately
5.3 Safety System Requirements
Overload protection triggers correctly
Emergency stop engages immediately
Anti-sway system reduces load swing effectively
Anti-collision system responds within required detection range
When all criteria are met, the crane is approved for commissioning and normal operation.
6. Documentation and Certification
After completing the load test:
A detailed load test report must be prepared
Photos and videos of the test should be stored
Independent inspectors (if required) sign the certification
Maintenance team receives a checklist for follow-up adjustments
Documentation usually includes:
Test procedures
Load values and measured data
Structural measurements
Safety device performance
Technician signatures
Final acceptance conclusion
7. Importance of Post-Load Test Adjustments
Even when the crane passes testing, minor adjustments are often necessary:
Fine-tuning limit switches
Re-tensioning wire ropes
Aligning trolley rails
Calibrating PLC parameters
Adjusting steering angles
Rechecking bolt torque after the load test
These adjustments extend the crane’s lifespan and improve reliability.
Conclusion
Load testing is a critical step in the commissioning of a Rubber Tired Gantry crane. A well-executed testing process ensures the crane can handle its rated capacity safely, perform reliably under real-world operating conditions, and comply with international standards. By following systematic load testing procedures—including preparation, static and dynamic testing, safety verification, and post-test inspection—owners and operators can ensure the crane is ready for efficient and dependable service from day one. Proper load testing not only safeguards equipment investment but also enhances operational safety, productivity, and long-term performance of the RTG crane.
